Compact design enabling easy integration
A-PNT
..
..

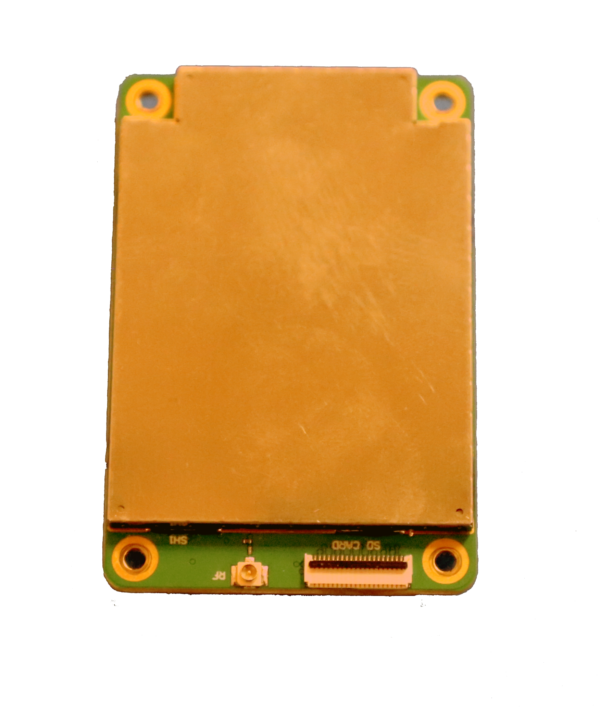

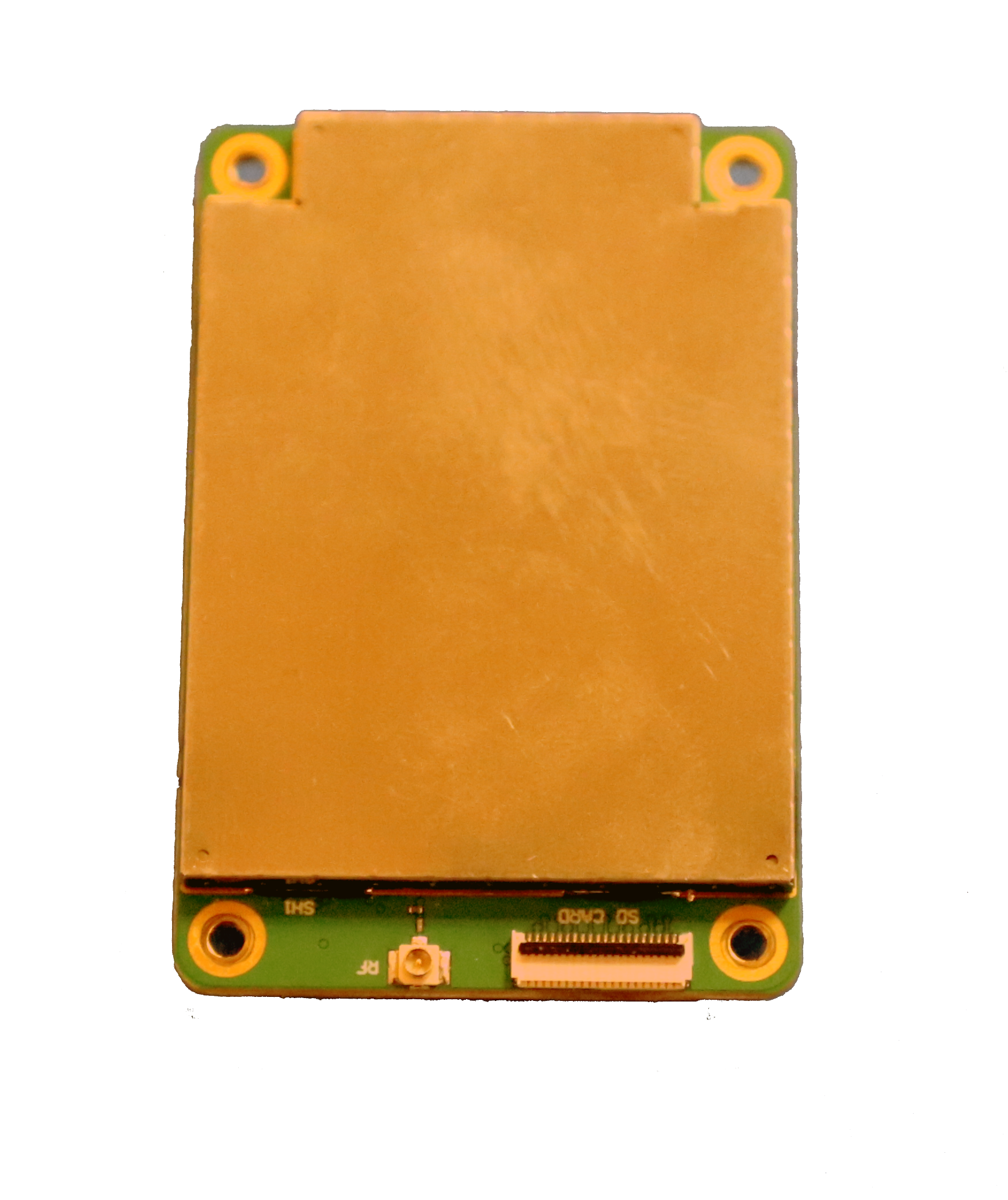

Performance-driven alternative location and timing module (ALTM) providing crucial capability when GPS or GNSS is jammed, spoofed or not available. Ideal for high-mobility situations, GNE3 standardized, small form factor, Iridium STL receivers provide position, navigation and timing (PNT) information, independent of GPS/GNSS. The compact design allows the GEN3 family of products to be employed during dismounted, ground-vehicle and airborne operations. Ready for any challenge or environment, GEN3 receivers are capable of tracking vehicles, personnel or other assets. The ALTM GEN3 receiver consists of an Iridium STL satellite receiver, on-board MEMS IMUs ,UART for serial port input for high-accuracy commercial or military GPS, UART serial port for data I/O and a 1-PPS timing signal.
Iridium STL
| Dimensions: | 2.425” (61.1 mm) x 1.675” (42.5 mm) x 0.270” (6.86 mm) |
| Weight: | 12.9 g (0.455 oz) |
| Input Voltage: | 4.0 – 5.5 VDC |
| Avg. Current Consumption: | 210mA @ 5.0 VDC |
| Operating Temp: | -40°C to +85°C (-40°F to +185°F) |
| Interface Connector: | 2x Hirose DF40C-40DP-0.4V(51) |
| Mating Connector: | Hirose DF40HC-(4.0)-40DS-0.4V(51) |
| AltNav Connector: | U.FL Connector Receptacle, Male, Surface Mount |
| Mounting: | 4x Mounting Holes, 0.095″ OD |
| Avg. Power: | 1.05 ± 0.1W |
| Recommended Antenna: | Passive Iridium Helical |
| Static Position Accuracy: | Typically < 25m |
| Dynamic Position Accuracy: | Typically < 200m |
| Timing Accuracy: | < 300ns RMS |
| Cold Startup Time: | Typical 3 – 5 minutes to < 50m, Cold Start |
| Hot Startup Time: | Typical 2 – 3 minutes to 50m, Initial Guess |
