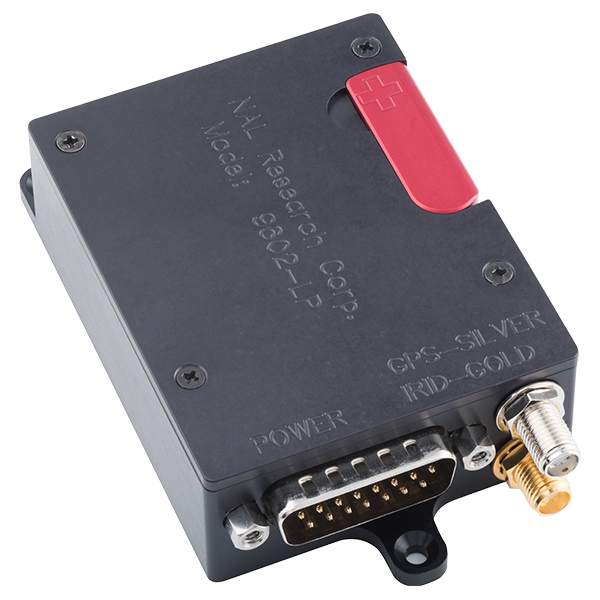

9602-LP

Description

NAL’s Model 9602-LP Tracker is an ultra-low power consumption tracker designed for SBD data communication using the Iridium® satellite network. Model 9602-LP can send either standard or 256-bit AES-encrypted GPS reports at a pre-programmed interval ranging from once every 60 seconds to once every seven days. The interval can be changed remotely while the unit is in the field.

Key Features:

Standby current of less than 65µA
Wide input voltage range from 5V to 32V
Internal Motion Sensor
Two (2) RS232 level I/Os for sensor interfaces
Seven (7) TTL/CMOS level I/Os for sensor interfaces
GPS Sensitivity of –160dBm
Programmed for either Commercial or DoD Gateway
Supports NAL Research and PECOS formats

Compatible Airtime Service:

SBD

Specifications

Dimensions	69 mm x 55 mm x 24 mm (2.73″ x 2.17″ x 0.94″)
Weight	136 g (4.8 oz.)
Input Voltage:	3.6V to 5.5V or 6.5V to 32V
Avg Current (Report):	200mA @ 5V Input
Avg Current (Sleep):	< 65µA @ 5V Input
I/O Interface:	15-Pin D-Sub
Antenna Interfaces:	SMA Female
Software Interface:	AT Commands through Serial
Operating Temp:	–40°C to +85°C (–40°F to +185°F)
Operating Humidity:	< 75% RH
Iridium Frequency:	1616.0 to 1626.5 MHz
GPS Frequency	1575.42 MHz (L1 carrier)
